Grandstream Unified integrated communication Solution
Model : GCC602x

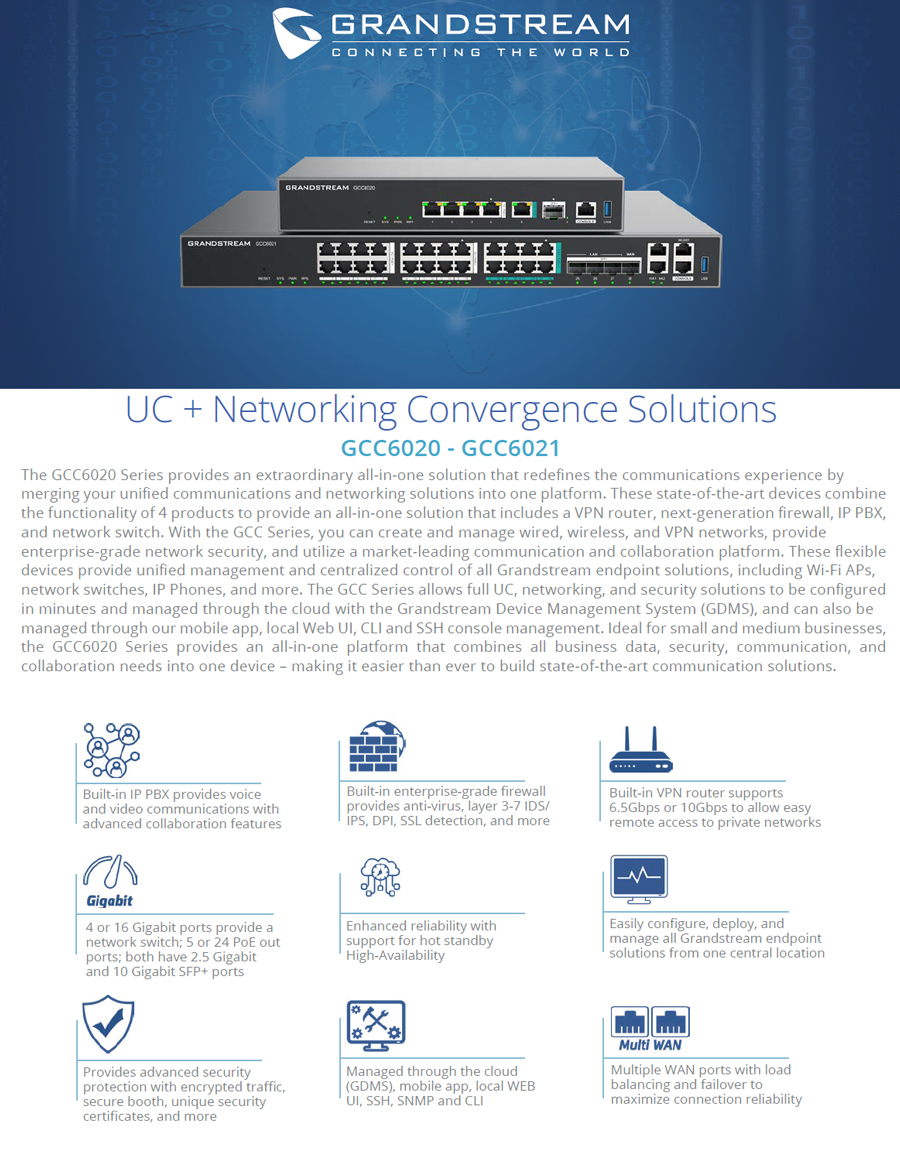

The GCC6020 Series provides an extraordinary all-in-one solution that merges unified communications and networking solutions into one platform. These state-of-the-art devices combine the functionality of 4 products to provide an all-in-one solution that includes a VPN router, next-generation firewall, IP PBX, and network switch.

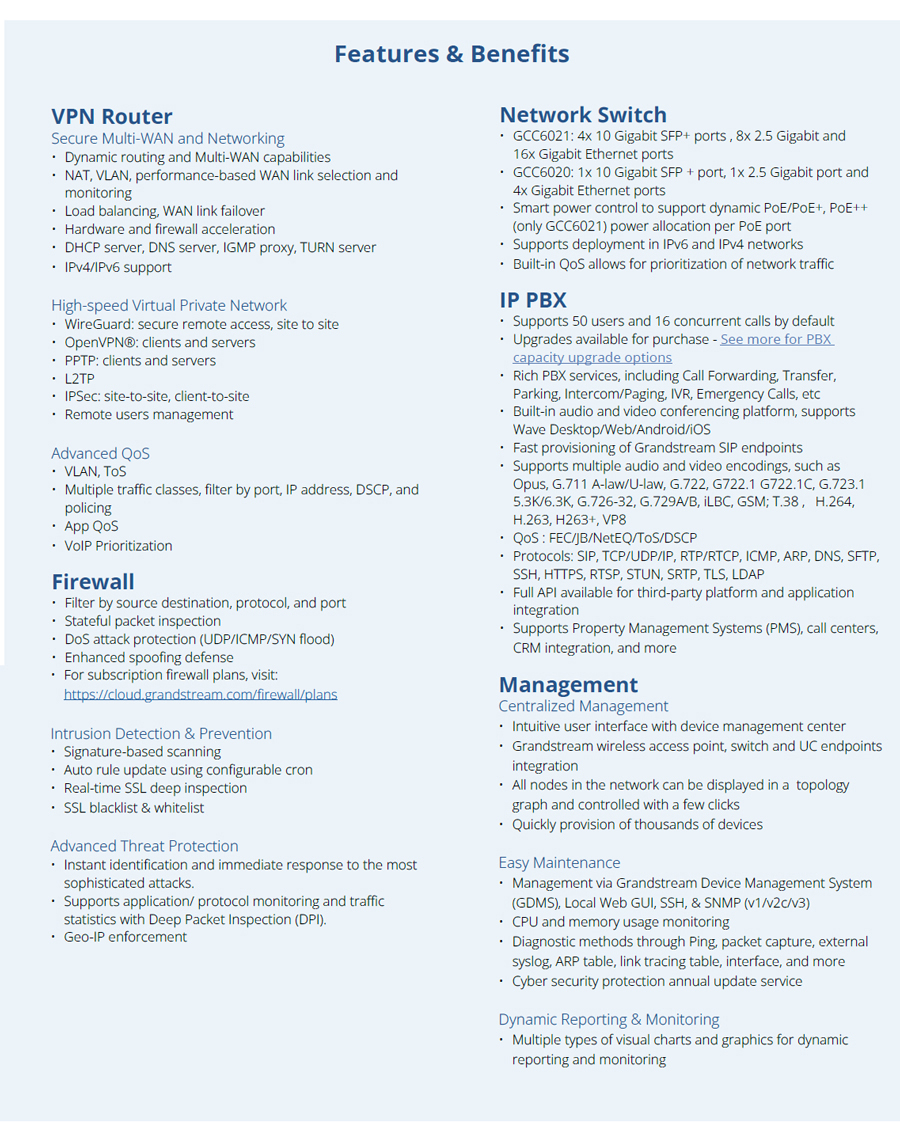

• Built-in IP PBX provides voice & video communications

• Built-in enterprise-grade firewall provides anti-virus, layer 3-7 IDS/IPS, DPI, SSL detection...

• Built-in VPN router supports 6.5Gbps or 10Gbps to allow easy remote access to private networks

• Built-in network switch with 4 or 16 Gigabit ports, 5 or 24 PoE out ports, both have 2.5 Gigabit and 10 Gigabit SFP+ ports

• Provides advanced security protection with encrypted traffic, secure boot, unique security certificates..

• Managed through the cloud GDMS, mobile app, local WEB UI, SSH,  SNMP

  • Product Detail
  • Inquiry

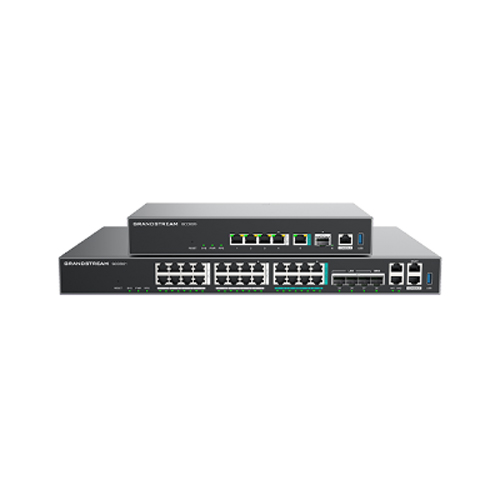

The Series includes two models: GCC6020 and GCC6021.  3-Year Warranty Guaranteed.

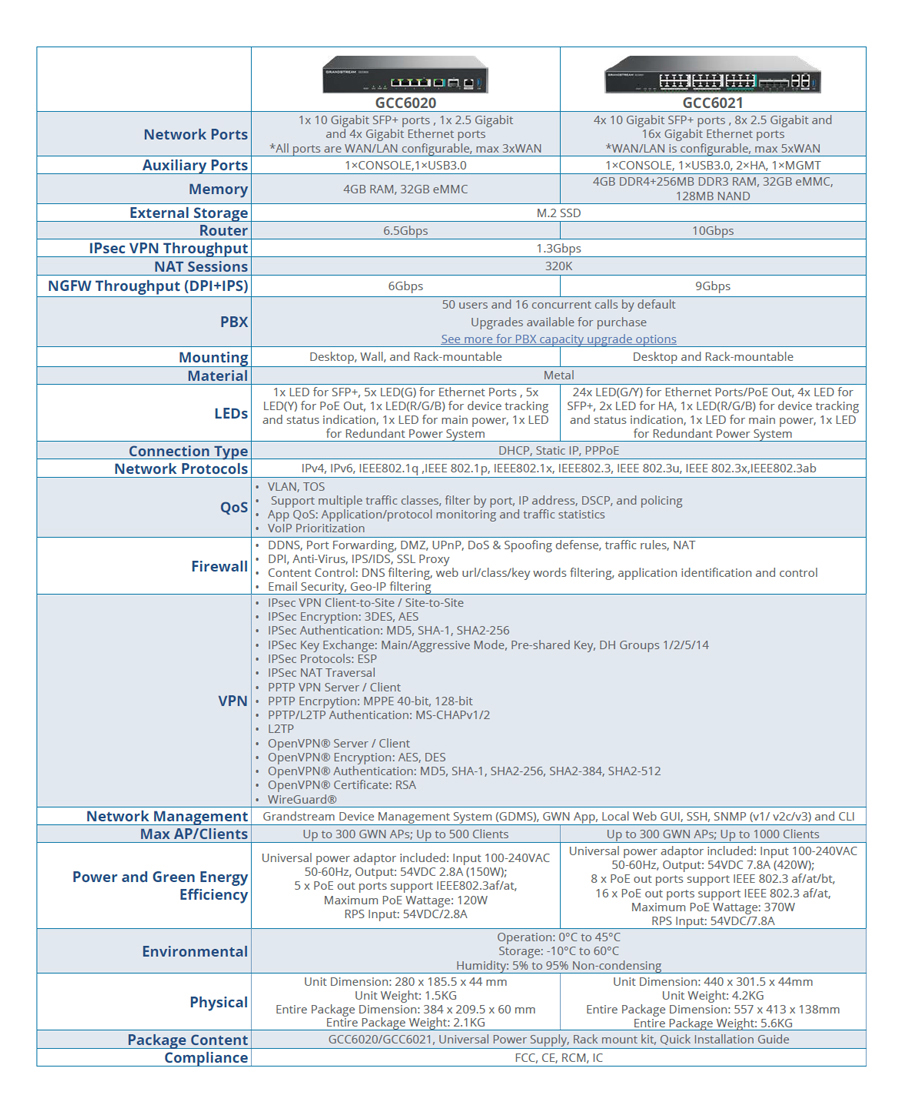

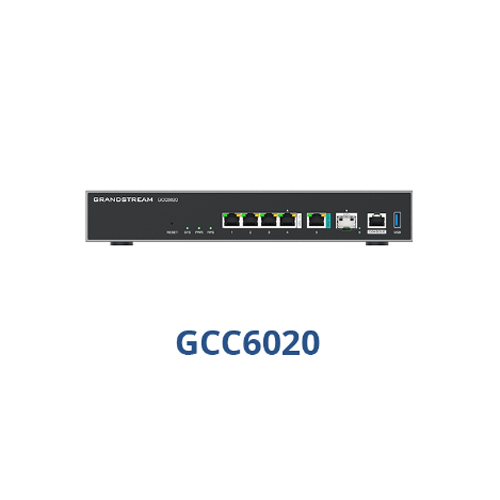

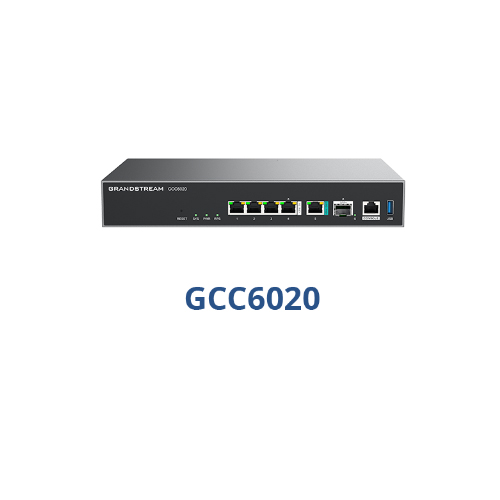

A: GCC6020: 1*10 Gigabit SFP+ port , 1*2.5 Gigabit +4 Gigabit Ethernet ports

    1*Console and 1* USB3.0,  4GB RAM+ 32GB eMMC ,Support M.2 SSD external storage

    6.5Gbps router ,1.3Gbps IPsec VPN Throughput, 320K NAT sessions, 6Gbps NGFW Throughput

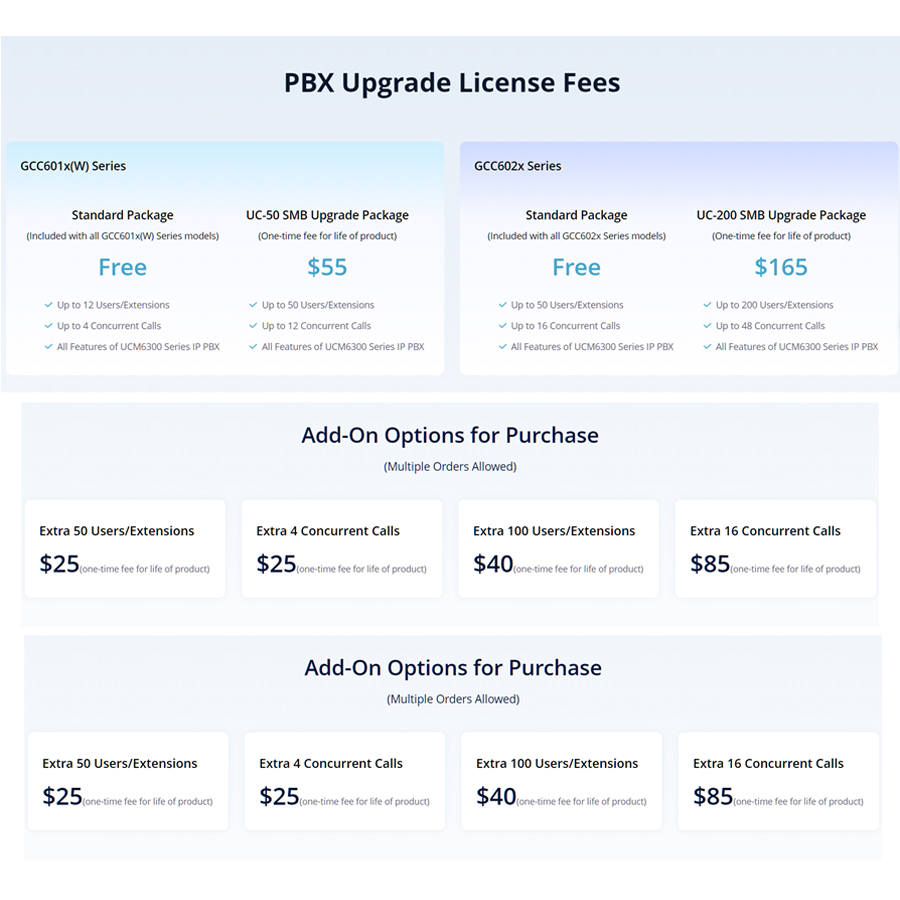

    Default 50 SIP Users and 16 concurrent calls ip pbx configuration , support more license to 1000 users

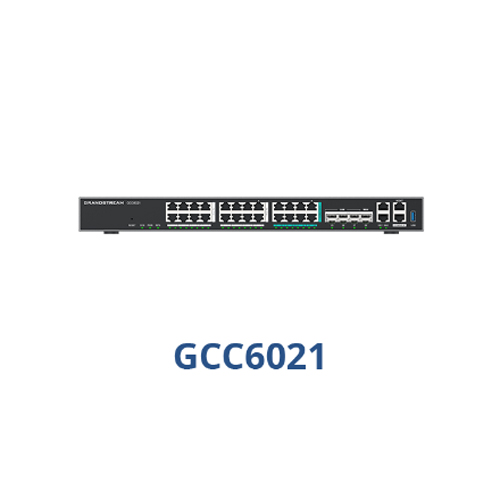

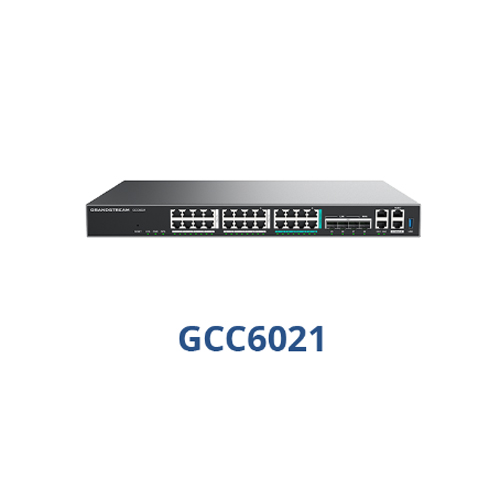

B: GCC6021: 4*10 Gigabit SFP+ port , 8*2.5 Gigabit +16 Gigabit Ethernet ports

    1*Console and 1* USB3.0 , 2*HA , 1*MGMT

    4GB DDR4 + 256MB DDR3 RAM, 32GB eMMC ,128MB   NAND, Support M.2 SSD external storage

    10Gbps router ,1.3Gbps IPsec VPN Throughput, 320K NAT sessions, 9Gbps NGFW Throughput

    Default 50 SIP Users and 16 concurrent calls ip pbx configuration, support more license to 1000 users
