Proolin Rack Business Large FXS port VoIP Gateways, supports 48/72/96 ports combination. With the features of exquisite enclosure and high performance.
· 48/72/96 FXS ports optional
· SIP protocol and compatible VoIP platform, IPPBX and SIP servers
· Stable function, flexible dialplan and friendly Web GUI

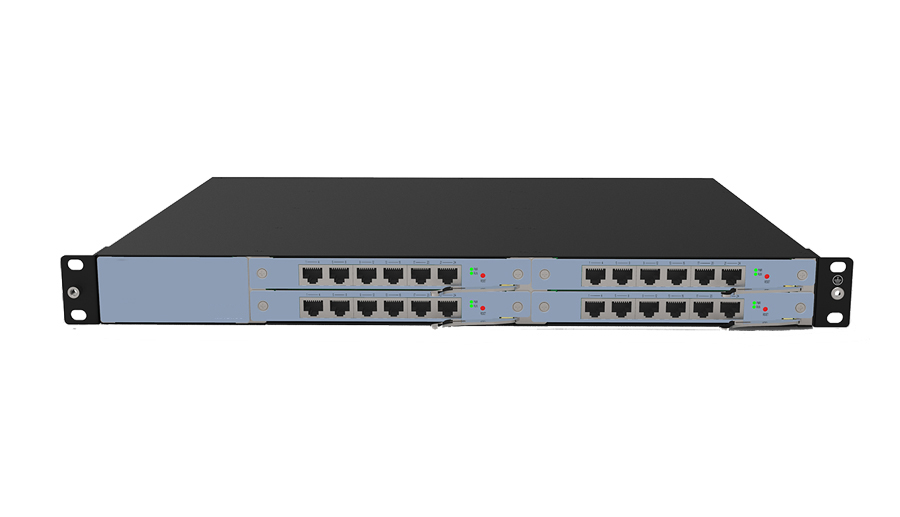

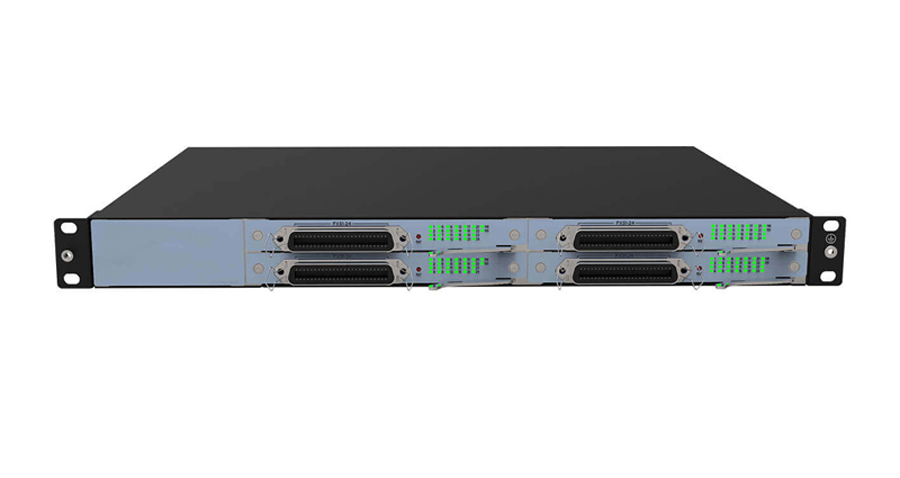

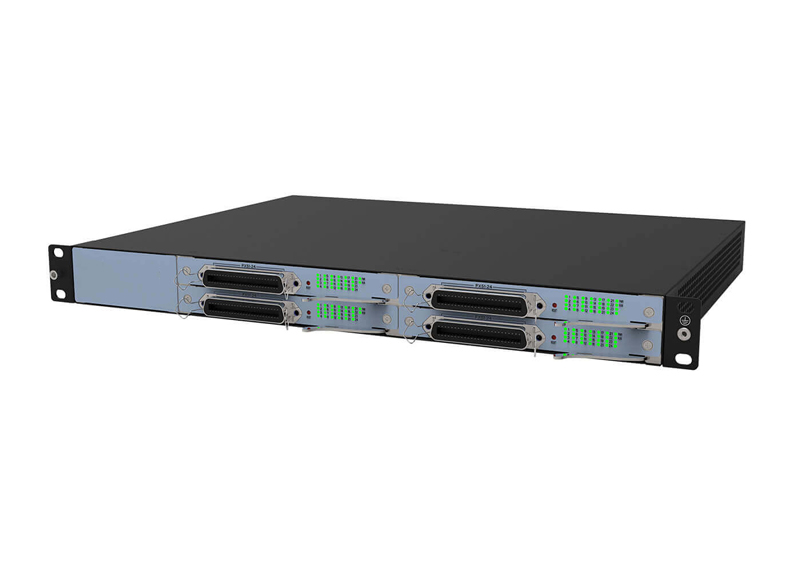

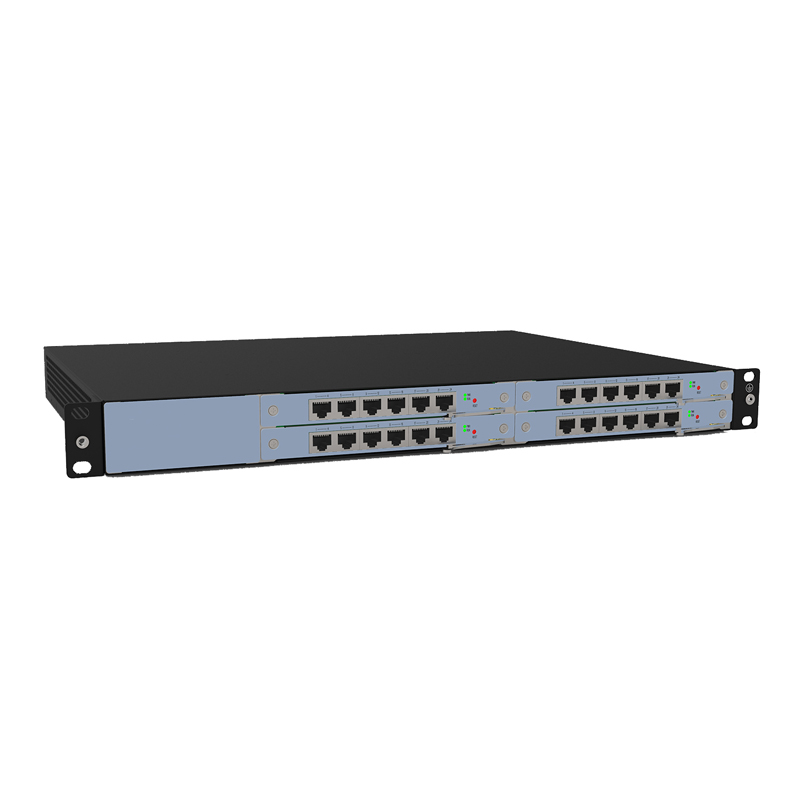

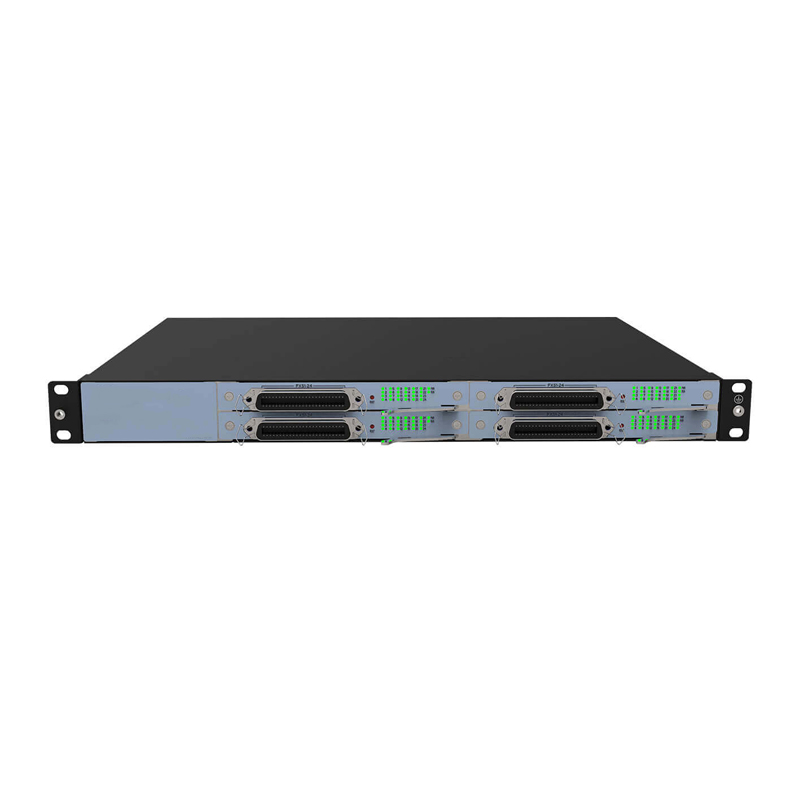

· Three interfaces ofRJ45 or RJ21 optional
· Voice codecs: G.711A, G.711U, G.729A, G.722, G.726, iLBC...
· Support voice, fax and POS terminal access

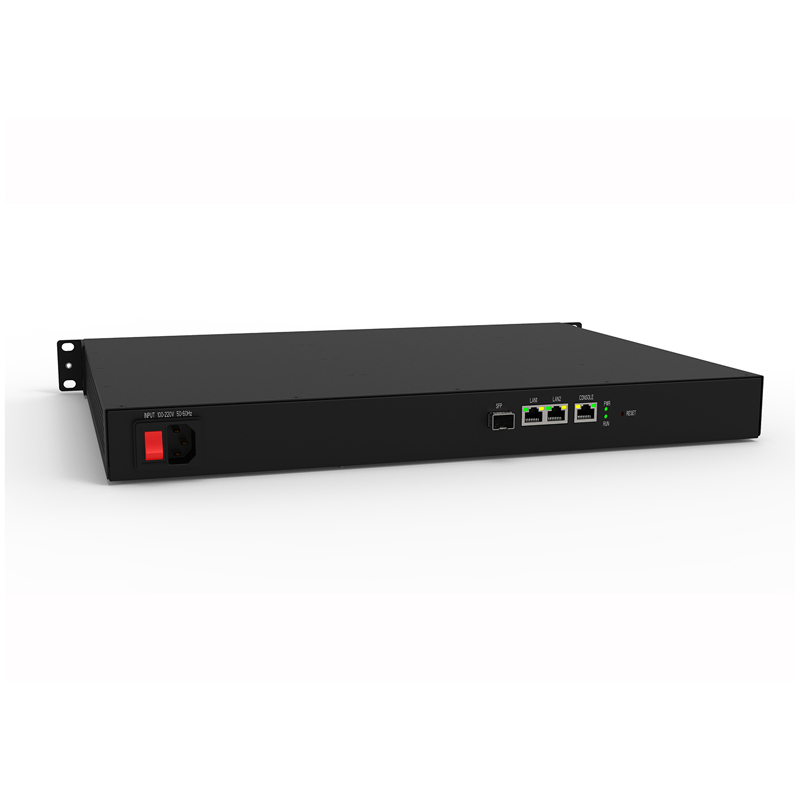

· 1 WAN +1 LAN Ethernet port and 1 RJ45 console port
- Product Detail
- Inquiry
IAD1100-48S IAD1100-72S IAD1100-96S |
Specifications
Proolin IAD1100 series is a multifunctional analog gateway for seamless connection between IPPBX, fax machines, analog phones and operators. Proolin IAD1100 series analog gateway supports 48/72/96 FXS interfaces with modular design, allowing for flexible addition or removal of module boards as needed. It provides RJ21/RJ45 interface modules, 2 1000Mbps Ethernet ports, 1 SFP port, and 1 Console port. Additionally, it offers excellent capacity for concurrent voice/fax processing, delivering strong performance and high stability, thus providing high-quality communication services for service providers, enterprises, call centers, and residential users in communities.
Proolin IAD1100 series analog gateways, compatible with the OIAD gateway system developed by Proolin Factory, offer support for various codecs such asG.711A, G.711U, G.729A, G.722, G.726 and more… Proolin IAD1100 series use standard SIP protocol and compatible with leading VoIP platform, IPPBX and SIP servers, such as Asterisk, Issabel, 3CX, FreeSWITCH ,BroadSoft and VOS VoIP operating platform.
Technical Specifications:
Item | IAD1100 Series Analog Gateway |
Interface | Support 48/72/96 ports |
Interface Type | Support RJ21/RJ45 |
Ethernet Port | 2 * 10/100/1000 Mbps ports |
Console | 1*RS232(RJ45) |
Network Interface | 1*SFP |
Dimension | 440*44.5*335mm |
Weight | 4.5kg |
Max Power Consumption | 120W |
Power Supply | 100-240VAC |
Operation Temperature | 0°C ~ 45°C |
Operation Humidity Range | 10% ~ 90% NON-CONDENSING |
Storage Temperature Range | -20°C ~ 70°C |
Certification | CE |
Features
Physical Interfaces (Capacity & Ethernet Interfaces)
o 48/72/96 FXS with RJ21
o 1 * Console RS232 (RJ45)
o RJ45/RJ21
o 1*WAN, 10/100Mbps, RJ-45
o 1*LAN, 10/100Mbps, RJ-45
o 1 * SFP
Voice & FAX
o G.711A/U, G.729A, G.722, G.726, OPUS, AMR and AMR-WB
o Comfort Noise Generation (CNG)
o Modem/POS
o Adaptive (Dynamic) Jitter Buffer
o Programmable Gain Control
o DTMF mode: Signal/RFC2833/INBAND
o T.38/Pass-through
o Echo Cancellation (G.168), with up to 128ms
Call Features
o Call Waiting
o Blind Transfer
o Attend Transfer
o Call Forward on Busy
o Call Forward on No Reply
o Unconditional Call Forward
o Warm/lmmediately Hotline
o Message Waiting Indicator
o SlP registration to different servers
o Call Hold
o Do-not-disturb
o 3-Way Conference
o Speed Dial
FXS
o Connector: RJ21/RJ45
o Dial Mode: DTMF and Pulse
o Pulse: 10 and 20 PPS
o Caller ID: DTMF/FSK CLI Presentation
o Max Cable Length:3 km
o Reversed Polarity
o Programmable Call Progress Tone
VoIP (Protocol)
o SIP v2.0 (UDP/TCP), RFC3261
o SDP, RTP(RFC2833), RFC3262, RFC3263, RFC3264, RFC3265, RFC3515, RFC2976, RFC3311
o RTP/RTCP, RFC2198, RFC1889
o IPv4 and lPv6
o Outbound Proxy
o RFC2806 TEL URI
o RFC3581 NAT, rport
o VLAN 802.1P/802.1Q
o RFC4028 Session Timer
o DNS SRV/A Query/NATPR Query
o NAT: STUN, Static/Dynamic NAT
Software Features
o Hunting Group
o Web ACL
o Telnet ACL
o Action URL
o PPPoE
o OpenVPN
o Digitmap
o Routing Rules based Prefixes
o Caller/Called Number Manipulation
o VEX (Advanced Peer To Peer Call)
Maintance
o SNMP v1/v2/v3
o Auto Provisioning
o Web Configuration
o Backup/Restore
o Firmware Upgrade via Web
o CDR
o IPOE
o Syslog (Emerg, alert, critical, error, warning, notice, info, debug)
o Ping/Tracert Test
o Network Capture
o NTP/Daylight Saving Time
o lVR local Maintenance
o Cloud-based Management
