Important Note ：All GoIP and Simbank devices are not sold or used in mainland China, Hong Kong, Macau, or Taiwan

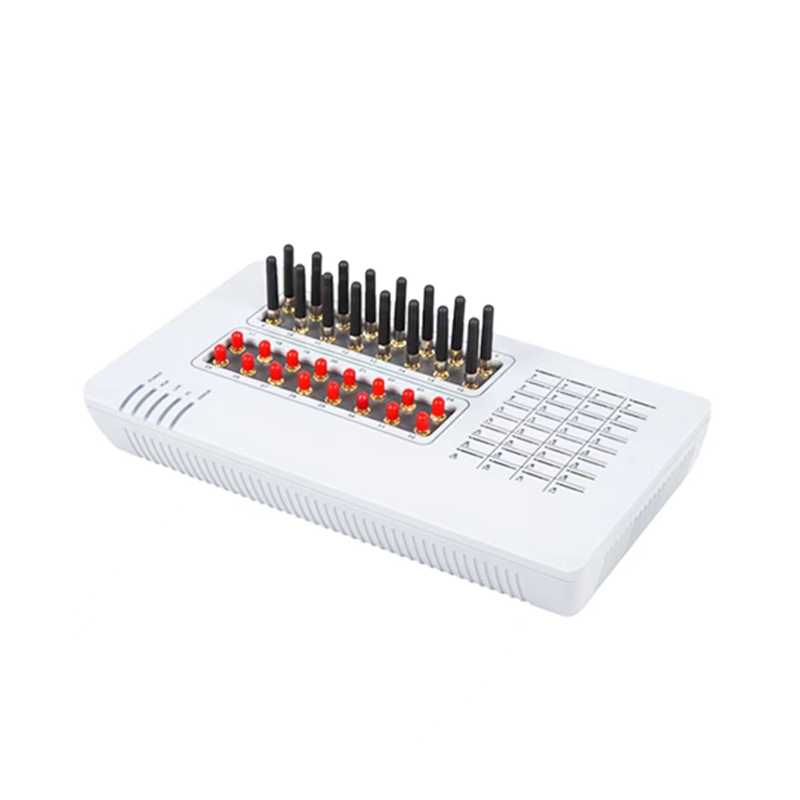

The GoIP comes with various models of 8, 16 and 32GSM channels. When integrating in a VoIP system, GoIP is highly scalable in meeting customer's requirement on the number of channels (lines). In addition with its power functions, high voice quality, and low price, GoIP is an inevitable choice of many system integrators, call termination operatiors, small companies, and individuals.

Key Features:
Open Standard VoIP Protocols (ITU H. 323 V4 and IETF SIP V2)
Single or Multiple Server Registrations
Two 10/100 Ethernet circuits connect to the LAN and an additional device
GSM module for making GSM calls
Speech quality ensured by QoS at the Ethernet and IP layers and comprehensive jitter buffer
VLAN and QoS support
NAT Transversal and Router functions
Voice prompts, HTTP Web, Auto Provision support for configuration and updates
Highly stable embedded Linux operating system in high performance ARM 9 Processor

Basic Features:
LEDs for Power, Ready, Status, WAN, PC, GSM
Call forward from GSM to VoIP and VoIP to GSM
Dial in mode or dial out mode only
Dial Plan
Password protection for both GSM dial in or dial out
Retransmit GSM Caller ID to VoIP terminal
Enhanced Features

Dynamic selection of codec
Advanced jitter buffer
Automatic traversal of NAT and firewall
VLAN / Qos
Router
Echo cancellation for Speakerphone
Comfort noise generation (CNG)
Voice activity detection (VAD)
Auto provisioning (requires auto provisioning server)
On line firmware upgrade
Multi-language support: English and Chinese
Supported Standards:
ITU: H. 323 V4, H. 225, H. 235, H. 245, H. 450
RFC 1889 - RTP/RTCP
RFC 2327 SDP
RFC 2833 RTP Payload for DTMF Digits, Telephony Tones and Telephony Signals
RFC 2976 SIP INFO Method
RFC 3261 SIP
RFC 3264 Offer/Answer model with SDP
RFC 3515 SIP REFER Method
RFC 3842 A Message Summary and Message Waiting Indicator
RFC 3489 Simple Traversal of User Datagram Protocol (UDP) Through Network Address Translators (NATs)
RFC 3891 SIP Replaces Header
RFC 3892 SIP Referred-By Mechanism
Draft-ietf-sipping-CC-transfer-04 Session Initiation Protocol Call Control - Transfer
Codec: G. 711 (A/µ Law), G. 729A/B, G. 723.1
DTMF: RFC 2833, In-band DTMF, SIP INFO

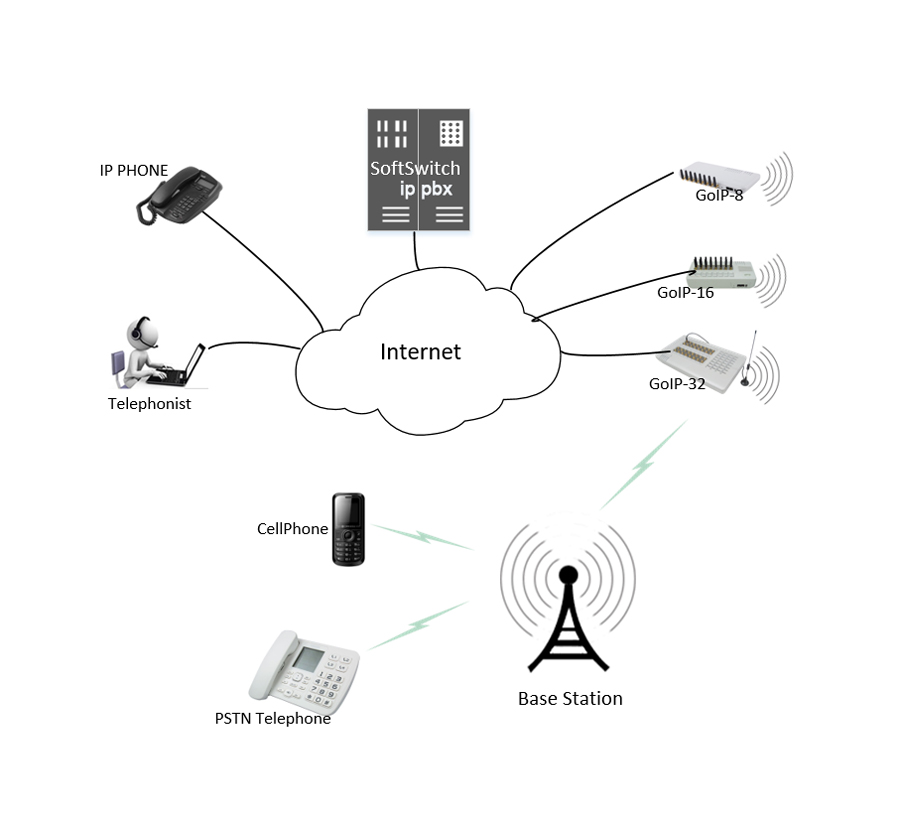

The concept diagram below shows a simple VoIP network for call center application.  It consists of a softswitch/IP PBX and VoIP clients such as an IP phone, a call center operator, and GoIPs.  All VoIP clients are configured to register to the softswitch/IP PBX.  For the GoIPs, each GSM channel is inserted with a valid SIM card in order to access the GSM network.  Both incoming and outgoing calls between the VoIP and GSM/PSTN networks can now be realized.
